The ARTUS 10 is the first direct reading spectrometer using CMOS and thermoelectric cooling technology. It is the ideal spectrometer for industries that process incoming steel, non-ferrous, unknown and composite metals material for in-process testing and final quality control. It meets the needs of users looking for a high-end solution. The newly designed ARTUS 10 includes a new scientific-grade CMOS sensor which enables a shorter analysis time of some metals to be as short as 10 seconds. Added intelligent algorithms eliminate background interference for enabling optimal analysis performance. Newly added features on the ARTUS also include a dual optical system; gas channel fluid design; die-cast aluminium encased light chamber; A-Care cloud service system; tool-free access to the UV and visible optic lenses; and a “clasping type” electrode locking device. Contact us for more information and to arrange a demonstration of the ARTUS 10 .
- Very useful for customers with mass detection requirements for steel, casting, non-ferrous, unknown and composite metals material.
- The test time is short and the single analysis time of some metals can be as short as 10 seconds.
- Powerful Aberrant Spark Removed (ASR) technology removes aberrant sparks and reduces sample preparation requirements.
- The argon-filled dual optical cell design ensures high analysis performance of long and short-wave elements and avoids pollution and drift caused by the vacuum system.
- Excellent combination of hardware and algorithms; no drift correction; more stable.
- Detection efficiency is improved and argon gas is saved by more than 2/3.
- Newly added “clasping type” electrode fixture makes it simple for maintenance.
- One-click excitation; easy to use.
- Spectrometer, internet and A-care service enables recognition of the cloud interconnection, instant automatic notification of device anomalies, remote software upgrade, maintenance and feedback.
- Functional module graphical design and software operation is simple and more user friendly.
- Graphical display of the status of each module of the instrument helps to clearly judge the operation of the equipment.
- Switching the sample control type does not require reloading the model.
- Single interface for daily operations.
Weight and Dimensions
- Weight: 90kg
- Packing Weight: 140kg
- Instrument Size: 706 x 513 x 810mm
- Packing Size: 980 x 990 x 770mm
Electrical Requirements
- Line input 90 to 260 Volts AC 50-60 Hz. Automatic voltage stabilisation.
Environmental Requirements
- Operating temperature 10 to 30 degrees C
- Storage temperature -0 to 70 degrees C
Other Technical Parameters
- Optical System: Paschen-Runge

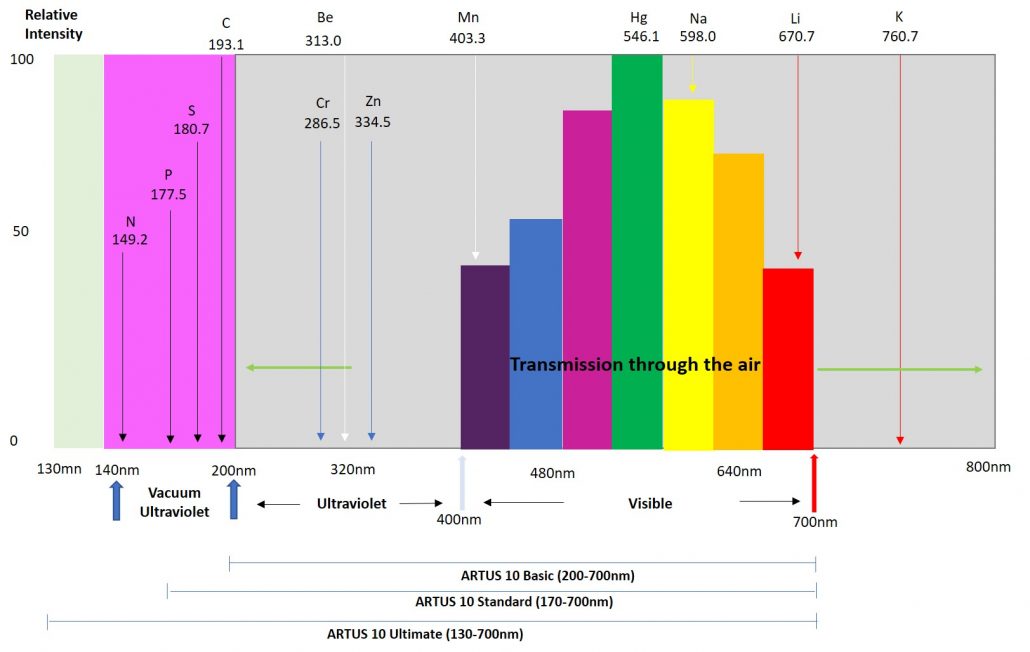

- Wavelength Range: ARTUS 10 Ultimate Plus: 130 – 700nm (with TEC option for better detection analysis of purer materials)
- ARTUS 10 Ultimate: 130 – 700nm
- ARTUS 10 Standard: 170 – 700nm
- ARTUS 10 Basic: 200 – 700nm
- Peak Power: 1200W
- Working Humidity: (20-80) %RH
- Argon Purity Requirements: approx. 99.999%
- Argon Inlet Pressure: (0.45-0.65) MPa
- Argon Flow: approx. 3.0L/min
- Excitation Table Apeture: 13mm
The ARTUS 10 is the first direct reading spectrometer using CMOS and thermoelectric cooling technology. It is the ideal spectrometer for industries that process incoming steel, non-ferrous, unknown and composite metals material for in-process testing and final quality control. It meets the needs of users looking for a high-end solution. DOWNLOAD BROCHURE
