The ARTUS 8 provides fast, precise and accurate analyses for the perfect melt. It is our most powerful and reliable spectrometer and is well suited for the metal processing industry and perfectly suited for the metal production and inspection & contract lab industries. It is available in 3 models: the ARTUS 8 Standard, ARTUS 8 Ultimate and ARTUS 8 Visible. Contact us for more information and to arrange a demonstration of the ARTUS 8 .

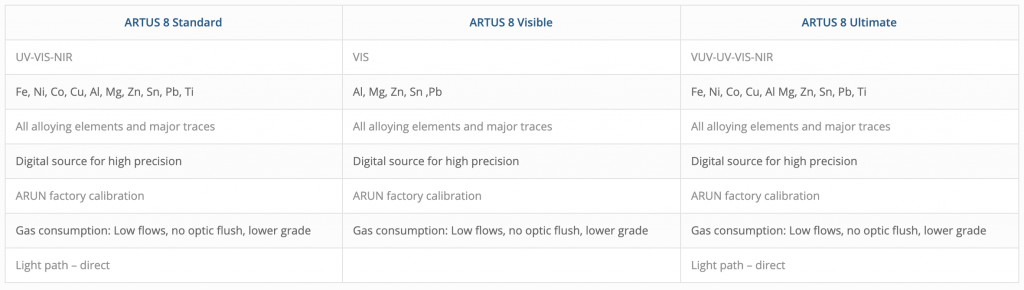

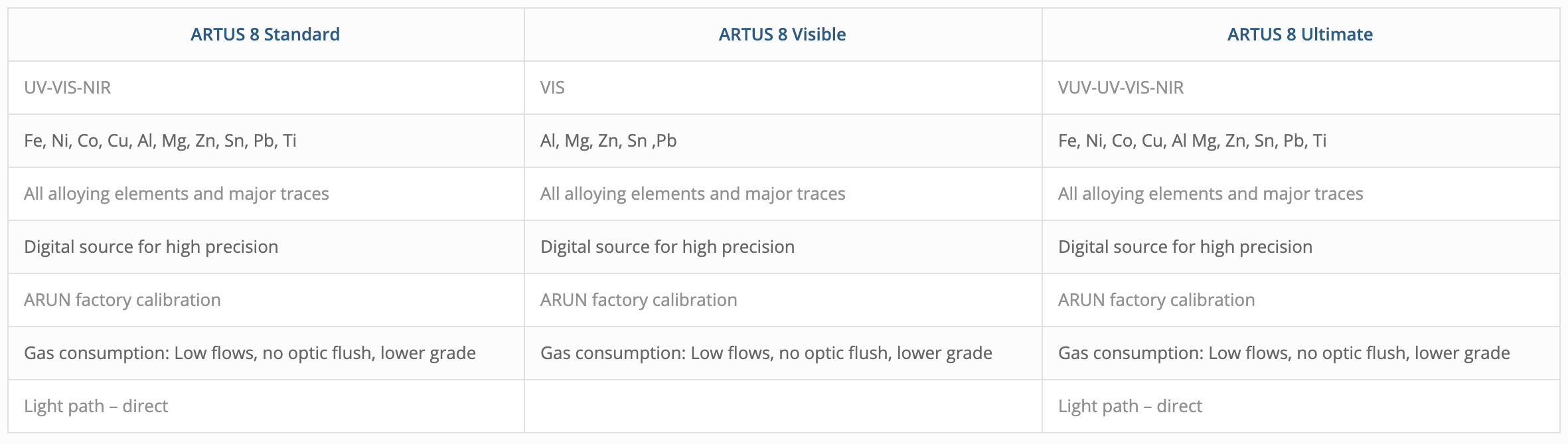

It is available in 3 models: the ARTUS 8 Standard, ARTUS 8 Ultimate and ARTUS 8 Visible. The ARTUS 8 Standard covers a wavelength range of 174-680 mn; ARTUS 8 Ultimate: 146-680 mn and ARTUS 8 Visible: 212-680 mn. All types of calibration elements are covered.
Here are some of the ARTUS 8’s main features:
- Compact bench-top model
- 3-side open spark stand with XY sample clamp
- High-resolution, full-spectrum optical systems
- No vacuum pump, nor argon purge in optics
- Holographic diffraction grating
- High-resolution CCDs
- Digital spark source
- Ethernet connectivity
| Optical System | Paschen – Runge |
| Wavelength Range | 146-680nm (Ultimate), 174-680nm (Standard) 70-520nm, 212-680nm (Visible) |
| Power Supply | Line input 90 or 260 Volts AC 50-60 Hz |
| EMC | IEC61000-4-2, IEC61000-4-4, IEC61000-4-5 |
| Working Temperature | 10° to 35° C |
| Operating Humidity | 20-80% |
| Argon Purity | 99.998% or 99.999% purity |
| Argon Flow | When burning – 3L per minute, Standby 0.1L per minute |
| Dimensions | 721 x 440 x 770mm |
| Weight | 80kg |
| Maximum Excitation Power | 400VA |
| Optical Source Type | 50VA |
| Discharge Frequency | 400Hz maximum |
| Discharge Current | 150A maximum |
| Spark Stand Aperture | 12mm |
The ARTUS 8 supports all metal types with the analyses of all their elements, in higher concentrations as well as the relevant traces. The range of factory calibrations is comprehensive with a wide choice of analytical programs for all applications and their alloys that include:
- Iron & steel
- Cast iron
- Aluminium
- Copper
- Magnesium
- Nickel
- Lead
- Tin
- Cobalt
- Titanium
The ARTUS 8 provides fast, precise and accurate analyses for the perfect melt. It is our most powerful and reliable spectrometer and is well suited for the metal processing industry and perfectly suited for the metal production and inspection & contract lab industries. It is available in 3 models: the ARTUS 8 Standard, ARTUS 8 Ultimate and ARTUS 8 Visible. The ARTUS 8 Standard covers a wavelength range of 174-680 mn; ARTUS 8 Ultimate: 146-680 mn and ARTUS 8 Visible: 212-680 mn. All types of calibration elements are covered.
